SP-CV615

Wall Mount Coaixal Speaker PA System Indoor Ceiling Speaker 5W/10W

Product Description:

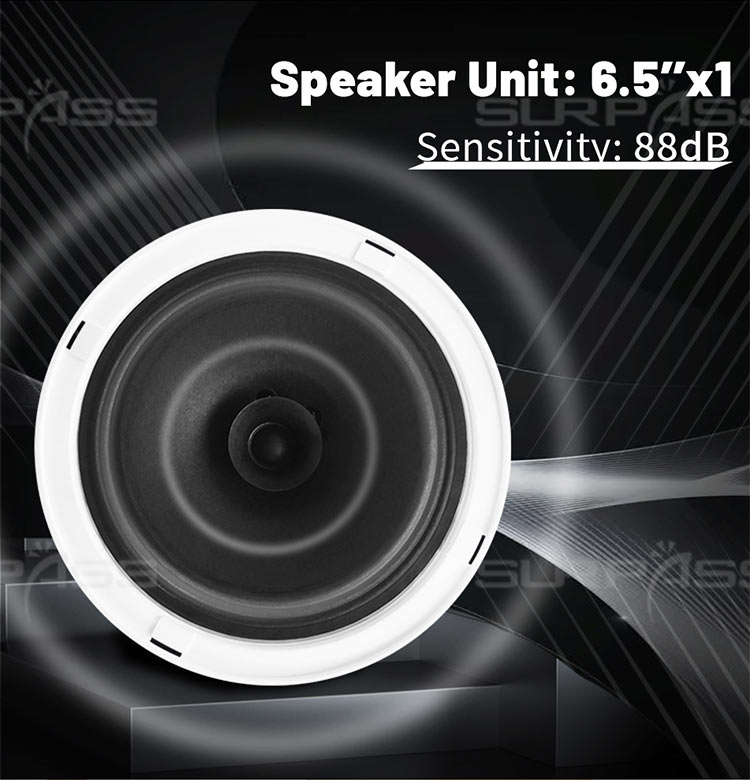

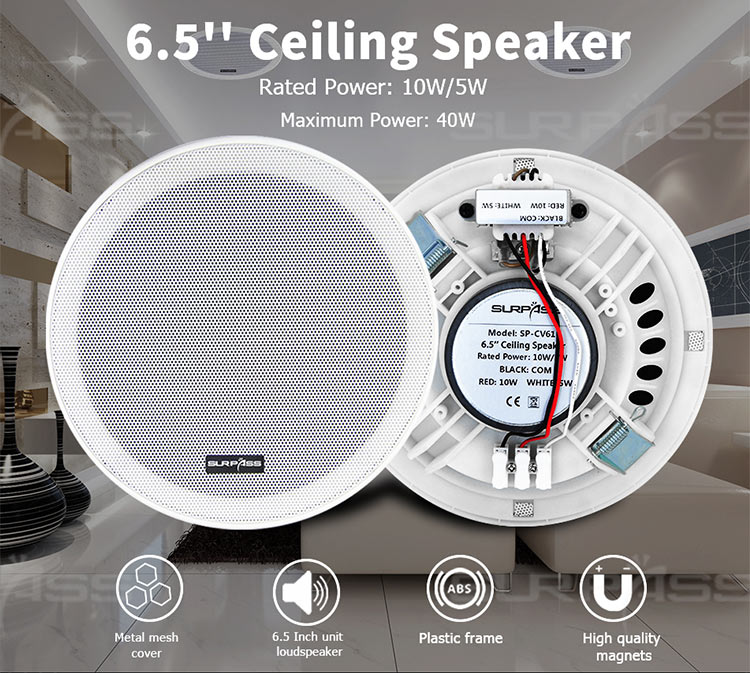

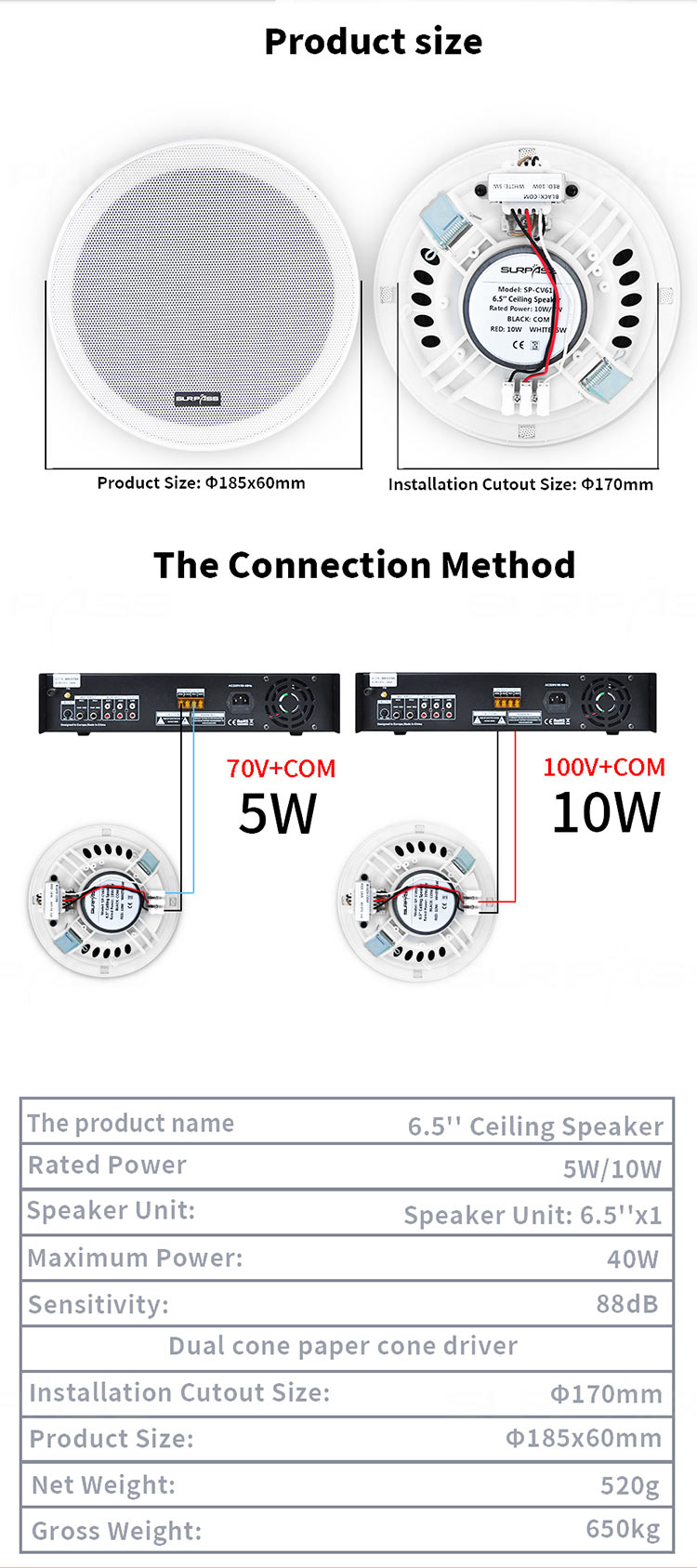

6.5'' Coaxial Ceiling Speaker ▪ Rated Power: 5W/10W ▪ Maximum Power: 40W ▪ Speaker Unit: 6.5''x1 ▪ Sensitivity: 88dB ▪ Dual cone paper cone driver ▪ Installation Cutout Size: Φ170mm ▪ Product Size: Φ185x60mm ▪ Net Weight: 520g ▪ Gross Weight: 650kg


Specification:

Item

Value

Name

6.5'' Coaxial Ceiling Speaker

Product Type

Ceiling Speaker

Color

White

Dimension

Φ185x60mm

Weight

520g

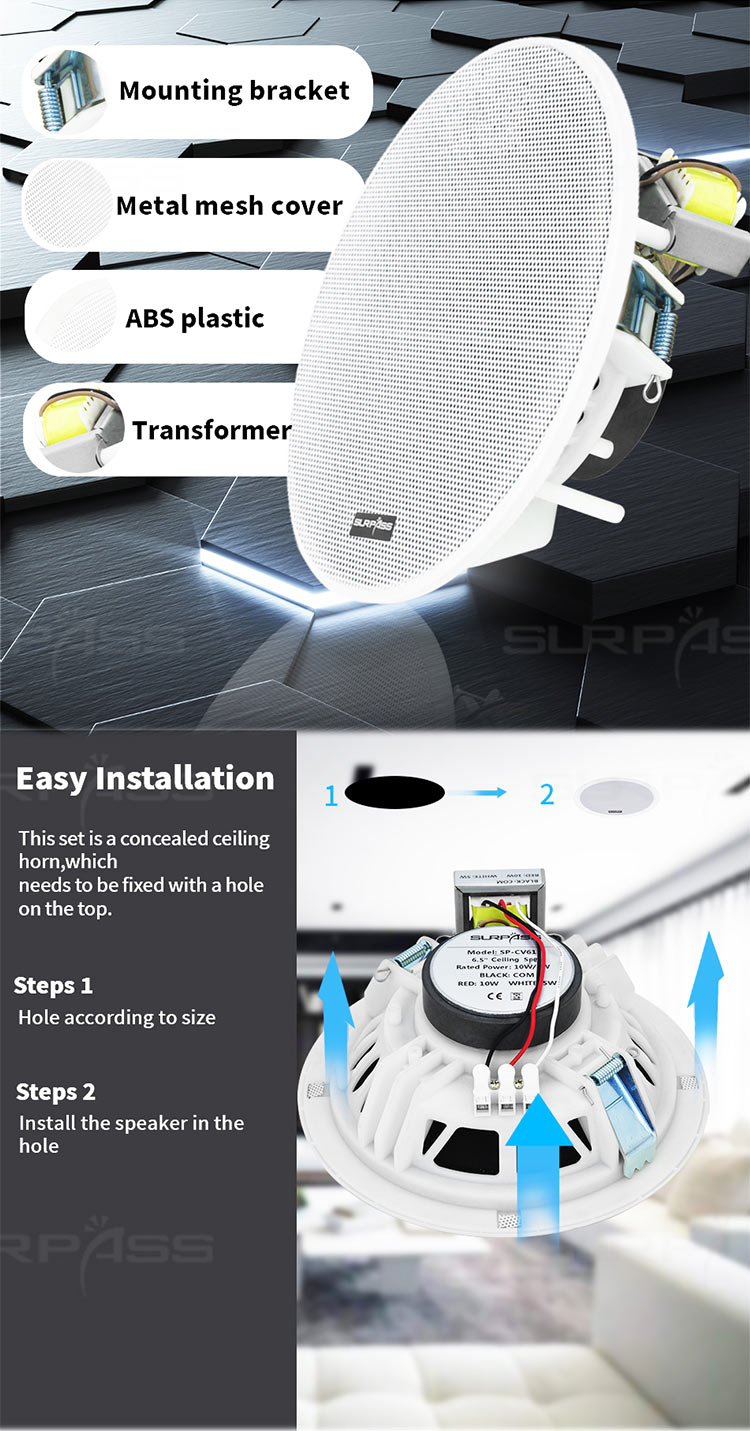

Hole for mounting

Φ170mm

Rated power

40W

Power taps

5W/10W

Sensitivity

88dB

Speaker Driver

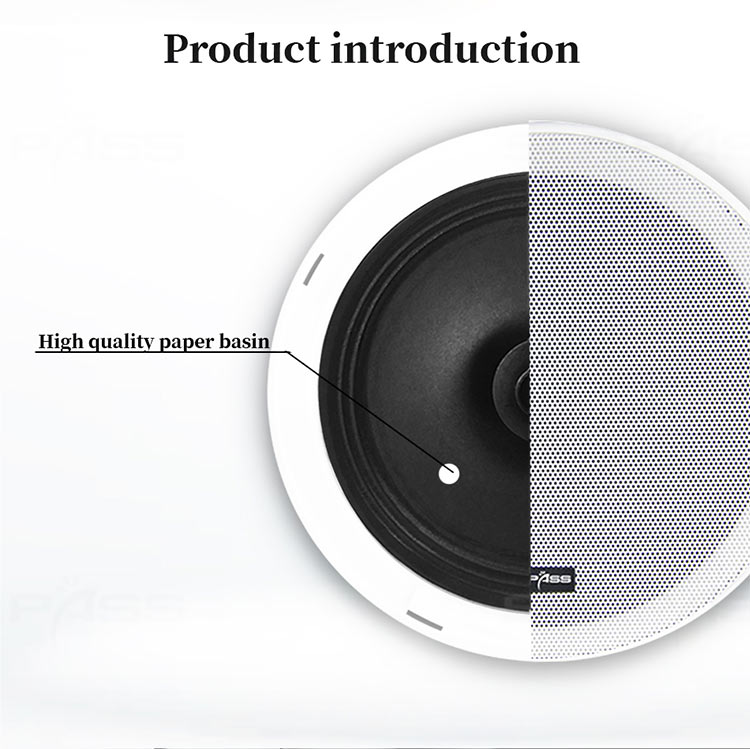

Dual cone paper cone driver

Speaker unit

6.5"*1



2022/09/22/articles/094531361.jpg

2022/09/22/articles/094628139.jpg

2022/09/22/articles/094633200.jpg

2022/09/22/articles/094638949.jpg

2022/09/22/articles/094644699.jpg

2022/09/22/articles/094650845.jpg2022/09/22/articles/094656918.jpg

High Definition Pictures：

Brochure/Data Sheet： SURPASSCeilingSpeakerSP-CV615.pdf、

Operation Manual：
