Product Description:
Compatible with all Samsung Galaxy Z Flip foldable mobile phones, 15W dual- coil fast charging, pure electric clip arm, 0.1S light touch opening and closing, with super capacitor, can be operated back and forth 2 times after the car is turned off, and the left and right arms are supported by wave silicone. Anti- skid, rear symmetrical circulation cooling holes, the device does not get hot when charging, greatly reduces the loss, and the heat dissipation and charging efficiency are stronger.
Model: WCH12

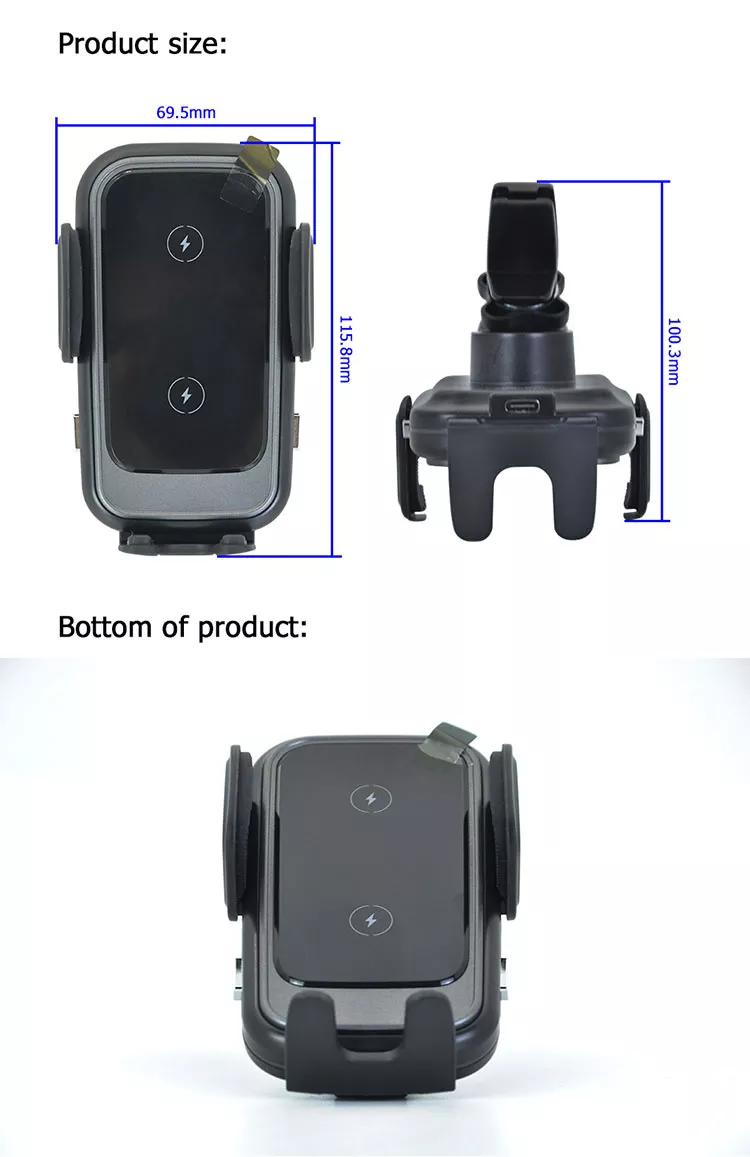

Product size: 116*70*54MM
Material: ABS+PC
Packing size: 118*75*77mm
Colour: Black
Input power: 5V/2A 9V/2A
Output power: 15W(MAX)
Effective distance of wireless charging: 3~6mm
Conversion efficiency: slow charge ≥ 70% fast charge ≥ 75%
Working frequency: 110-205KHz
Clip: Knob screw clip(clamp firmly)
Product net weight: 142 g
Gross weight: 226 g
Specification:
item  | value  |
Type  | Wireless Charger, Fast Charger  |
Usage  | Mobile Phone  |
Material  | ABS  |
Function  | Qi  |
Brand Name  | SURPASS  |
Model Number  | WCH12  |
Port  | TYPE-C  |
Input voltage and current  | 9V/2A, 5V/2A  |
Output Power  | 15W  |
Place of Origin  | China  |
  | Guangdong  |
Input power  | 5V/2A 9V/2A  |
Output power  | 15W(MAX)  |
Conversion efficiency  | slow charge ≥ 70% fast charge ≥ 75%  |
Working frequency  | 110-205KHz  |
Model  | WCH12  |
Material  | ABS+PC  |
Effective distance of wireless charging  | 3~6mm  |
Clip  | Knob screw clip(clamp firmly)  |
Product size  | 116*70*54MM  |
Net weight  | 142 g  |









                High Definition Pictures:





                Brochure/Data Sheet:


                  SURPASSWirelessChargerSP-WCH12.pdf、




                Operation Manual:
