SP-MB6650U SP-MB6500U SP-MB6350U SP-MB6250U SP-MB6180U SP-MB6130U SURPASS AUDIO PA 6 ZONE MIXER AMPLIFIER
6 Channel 650W 500W 350W 250W 180W 130W 70V 100V Public Address Mixer Amplifier with BT USB SD FM
Model: SP-MB6650U
High POWER Reliable 650W Public Address Mixer Amplifier with BT
Input Type: Bluetooth, Mp3, USB/SD, FM, Line, Microphone, IR Remote Control
Line Input: AUX1, AUX2
Sensitivity: 330mV
Microphone input: MIC1 (priority), MIC2, MIC3
Sensitivity: 10mV
Zone output: 6-way power control 4 gears
Output voltage: 100V/70V/4Ω-16Ω
Protection type: power-on delay, short circuit, over temperature, stepless fan acceleration
Indicators: Power, Signal, Clip, Protect
Input power: AC230V/50Hz
Aluminum Panel
Production Dimension: 483*320*89mm
Package Size: 550*380*150mm
Model: SP-MB6500U
500W High Power STABLE PA Mixer Power Amplifier
Input Type: Bluetooth, Mp3, USB/SD, FM, Line, Microphone, IR Remote Control
Line Input: AUX1, AUX2
Sensitivity: 330mV
Microphone input: MIC1 (priority), MIC2, MIC3
Sensitivity: 10mV
Zone output: 6-way power control 4 gears
Output voltage: 100V/70V/4Ω-16Ω
Protection type: power-on delay, short circuit, over temperature, stepless fan acceleration
Indicators: Power, Signal, Clip, Protect
Input power: AC230V/50Hz
Aluminum Panel
Production Dimension: 483*320*89mm
Package Size: 550*380*150mm
Products Description
2021 Hot Sells Surpass MB6250U Sound System PA Amplifiers slim size Professional Mixer Audio Amplifier
Feature:
Input Type: blue-tooth, Mp3, USB/SD, FM, Line, Microphone, IR Remote Control Line Input: AUX1, AUX2 Sensitivity: 330mV Microphone input: MIC1 (priority), MIC2, MIC3 Sensitivity: 10mV Zone output: 6-way power control 4 gears Output voltage: 100V/70V/4Ω-16Ω Protection type: power-on delay, short circuit, over temperature, stepless fan acceleration Indicators: Power, Signal, Clip, Protect Input power: AC230V/50Hz Aluminum Panel Production Dimension: 483*320*89mm Package Size: 550*380*150mm
Specification
Item | Value |
Place of Origin | China |
Brand Name | SURPASS |
Model Number | MB6350U |
Warranty | 3months-1year |
Certification | CE, FCC, RoHS |
Customized | Yes |
Dimension | 483*320*89mm |
Storage | USB / TF |
Connection Type | blue-tooth |
Format | Mixer Amplifier |
Rated Power Output | 350W |
Speaker Output | 100V & 70V & 4-16 Ohms |
Continue Power | 7.5W |
Audio Input | 3 MIC, 2 AUX, USB, TF, Blue-tooth, BT ANT |
Audio Output | RCA Line out for REC |
T.H.D. | Max Output Power @4Ω 1KHz, ≤1%THD |
S/N Ratio | MIC>60dB, AUX>75dB, MUSIC>75dB, |
DC IN | DC 24V |
AC Power Supply | AC230V/50Hz |
Products Description
Hot Sells Surpass MB6250U Sound System PA Amplifiers slim size Professional Mixer Audio Amplifier
Feature:
Input Type: blue-tooth, Mp3, USB/SD, FM, Line, Microphone, IR Remote Control Line Input: AUX1, AUX2 Sensitivity: 330mV Microphone input: MIC1 (priority), MIC2, MIC3 Sensitivity: 10mV Zone output: 6-way power control 4 gears Output voltage: 100V/70V/4Ω-16Ω Protection type: power-on delay, short circuit, over temperature, stepless fan acceleration Indicators: Power, Signal, Clip, Protect Input power: AC230V/50Hz Aluminum Panel Production Dimension: 483*320*89mm Package Size: 550*380*150mm
pecification
item | PA Amplifier |
Place of Origin | China |
Brand Name | SURPASS |
Model Number | MB6250U |
Warranty | 3months-1year |
Certification | CE, FCC, RoHS |
Customized | Yes |
Dimension | 483*320*89mm |
Storage | USB / TF |
Output Power | 60W |
Connection Type | blue-tooth |
Format | Mixer Amplifier |
Rated Power Output | 60W |
Speaker Output | 100V & 70V & 4-16 Ohms |
Continue Power | 7.5W |
Audio Input | 3 MIC, 2 AUX, USB, TF, Blue-tooth, BT ANT |
Audio Output | RCA Line out for REC |
T.H.D. | Max Output Power @4Ω 1KHz, ≤1%THD |
S/N Ratio | MIC>60dB, AUX>75dB, MUSIC>75dB, |
DC IN | DC 24V |
AC Power Supply | AC230V/50Hz |
Power Consumption | 80W |
Products Description
Traditional Mixer RMS 180 W Digital Reverberation effects Amplifier
Input Type: blue-tooth, USB, Mp3, Line, Microphone, IR Remote Control
Line Input: AUX1/AUX2
Sensitivity: 500mV
Microphone input: MIC1 (priority), MIC2-6
Sensitivity: 10mV
Output Impedance: 8Ω/4Ω
Frequency response: 20Hz-20KHz (1KHz/≤0.1%THD)
Signal-to-noise ratio: >92dB
Channel separation: >50dB
Other functions: 48V phantom power, feedback suppression
Input power: AC90V~240V, 50Hz/60Hz
Aluminum Panel
Production Dimension: 430*320*80mm
Package Size: 545*380*150mm
Products Description
Rated Power 130W Desktop Best For Small Shops, Stores Music System Power Mini Mixer Amplifier
Feature:
Input Type: blue-tooth, Mp3, USB/SD, FM, Line, Microphone, IR Remote Control Line Input: AUX1, AUX2 Sensitivity: 330mV Microphone input: MIC1 (priority), MIC2, MIC3 Sensitivity: 10mV Zone output: 6-way power control 4 gears Output voltage: 100V/70V/4Ω-16Ω Protection type: power-on delay, short circuit, over temperature, stepless fan acceleration Indicators: Power, Signal, Clip, Protect Input power: AC230V/50Hz Aluminum Panel Production Dimension: 483*320*89mm Package Size: 550*380*150mm
Specification
item | PA Amplifier |
Place of Origin | China |
Brand Name | SURPASS |
Model Number | MB6130U |
Warranty | 3months-1year |
Certification | CE, FCC, RoHS |
Customized | Yes |
Dimension | 483*320*89mm |
Storage | USB / TF |
Connection Type | blue-tooth |
Format | Mixer Amplifier |
Rated Power Output | 130W |
Speaker Output | 100V & 70V & 4-16 Ohms |
Continue Power | 7.5W |
Audio Input | 3 MIC, 2 AUX, USB, TF, Blue-tooth, BT ANT |
Audio Output | RCA Line out for REC |
T.H.D. | Max Output Power @4Ω 1KHz, ≤1%THD |
S/N Ratio | MIC>60dB, AUX>75dB, MUSIC>75dB, |
DC IN | DC 24V |
AC Power Supply | AC230V/50Hz |

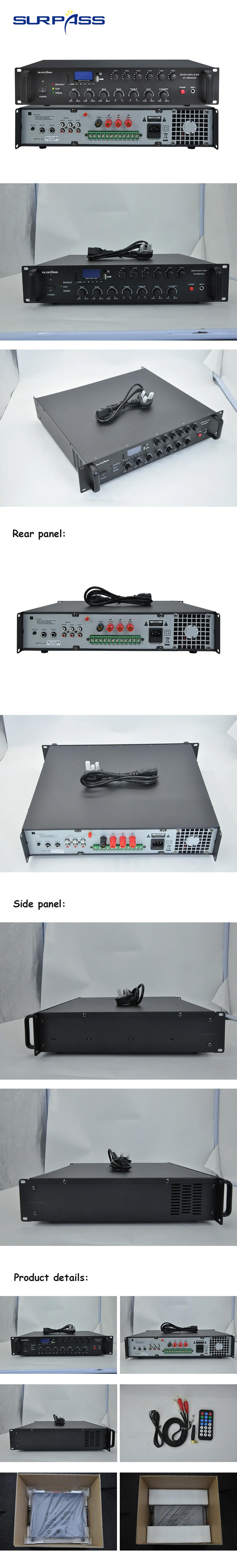

High Definition Pictures：
