SC107540 10 inches 75-core Coaxial Horn
156 Integrated magnetic 10 inches 75-core Coaxial Horn
156 Integrated magnetic 10 inches 75-core Coaxial Horn
156 Integrated magnetic 10 inches 75-core Coaxial Horn Specification:
Model | SC107540 |
Description | 10 inches 75-core Coaxial Horn |
Installation aperture | About 203mm |
Outer diameter | About 260mm |
Diagonal screw hole | About 233mm |
Height | About 142mm |
Magnet | 156 Integrated magnetic |
Voice Coil | High 44 core, low 65 core |
Drum paper | Imported edged paper basin |
Frame material | Cast aluminum frame |
Rated Impedance | 8 ohm |
Minimum Impedance | 6 ohm |
Maximum power | Treble 100 Watts /bass 500 Watts |
Sensitivity | Treble 106 dB /bass 94 dB (1W/1m) |
Frequency range | 56-18K Hz |
DC impedance | 5.2 ohm |
Resonant frequency | 56Hz |
Electrical Quality Factor Number | 0.41 |
Mechanical Quality Factor Value | 5.7 |
Total Quality Factor Number | 0.38 |
Effective Volume | 41 liters |
Vibration Area | 380cm2 |
Magnetic Force | 13.9Txm |
Effective Mobile Quality | 39g |
Place of Origin | Guangzhou, China |
Net Weight | About 5.1KG |

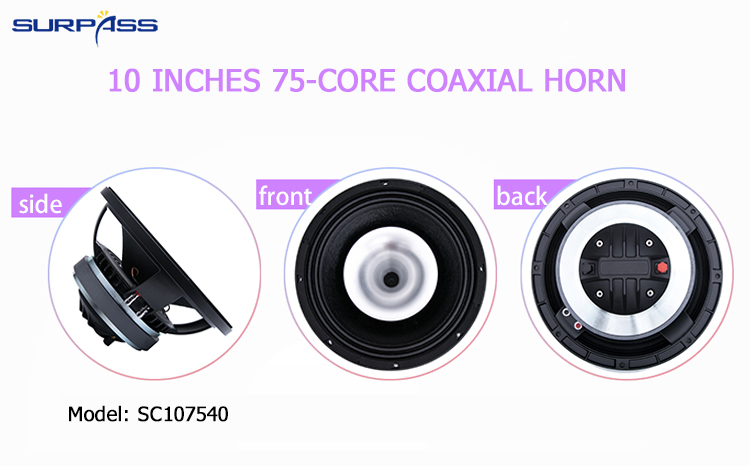

156 Integrated magnetic 10 inches 75-core Coaxial Horn detail images
