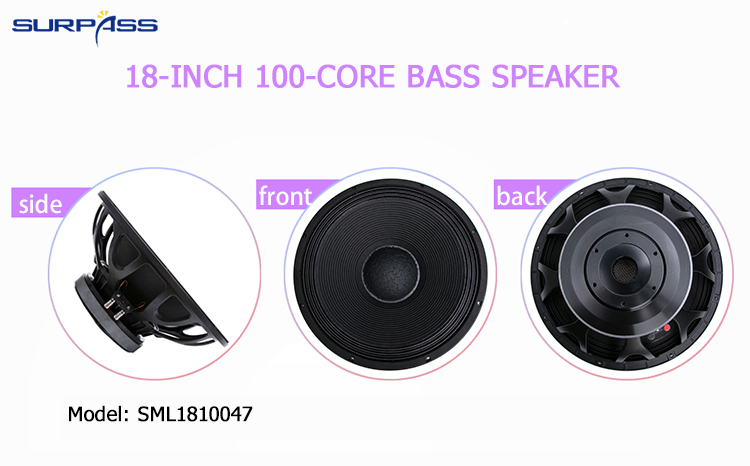

SML1810047 18-inch 100-core Bass Speaker
Ferrite 220 Magnet 18-inch 100-core Bass Speaker
Ferrite 220 Magnet 18-inch 100-core Bass Speaker
Ferrite 220 Magnet 18-inch 100-core Bass Speaker Specification:
Model | SML1810047 |
Description | 18-inch 100-core Bass Speaker |
Installation aperture | About 422mm |
Outer diameter | About 460mm |
Diagonal screw hole | About 440mm |
Height | About 210mm |
Magnet | Ferrite 220 magnet |
Voice Coil | 100 core high temperature resistant pure copper wire |
Drum paper | RCF paper basin |
Frame material | Cast aluminum frame |
Rated Impedance | 8 ohm |
Minimum Impedance | 6 ohm |
Rated power | 800 Watts |
Maximum power | 1600 Watts |
Sensitivity | 97 dB (1W/1m) |
Frequency range | 45-1.5K Hz |
DC impedance | 5.2 ohm |
Resonant frequency | 45Hz |
Electrical Quality Factor Number | 0.39 |
Mechanical Quality Factor Value | 4.91 |
Total Quality Factor Number | 0.38 |
Effective Volume | 134 liters |
Vibration Area | 1230 cm2 |
Magnetic Force | 27 Txm |
Effective Mobile Quality | 195g |
Place of Origin | Guangzhou, China |
Net Weight | About 12.4KG |
Ferrite 220 Magnet 18-inch 100-core Bass Speaker

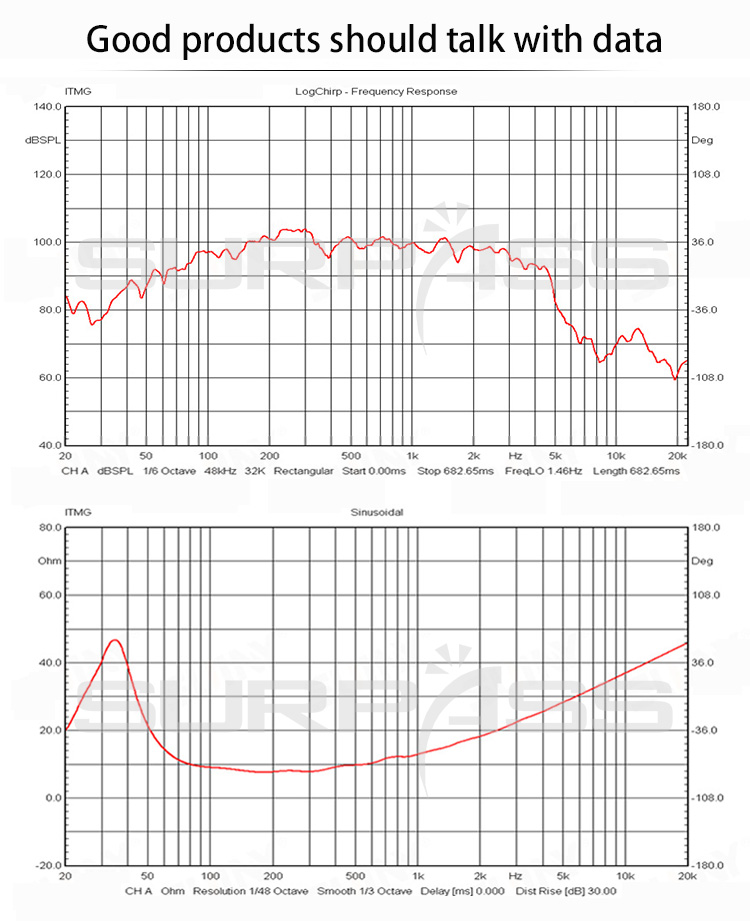

Ferrite 220 Magnet 18-inch 100-core Bass Speaker detail images:
Ferrite 220 Magnet 18-inch 100-core Bass Speaker
Ferrite 220 Magnet 18-inch 100-core Bass Speaker
