Two Zone PA Mixer Amplifier Independent Volume Control
Wall Mount on wall is available
SP-MT60(60W)  SP-MT120(120W)  SP-MT180(180W)


Feature:
▪ Mini 2 Zone Mixer Amplifier with multi audio inputs for paging & background music system.
▪ 2 Zone speaker output independent volume control
▪ Can be wall-mounted onto wall, elegant appearance and high reliable performance.
▪ Mini table-top design 1.5U height for commercial audio and industrial public address.
▪ This 2 Zone Mixer Amplifier integrate pre amplifier and power amplifier.
▪ Ideal for classroom, retail store, small restaurant, or office background music and paging system .
▪ Rated power 60W, 120W and 180W.
▪ 100V and low impedance 4Ω-16Ω speaker outputs for versatile connections, with output protection cover.
▪ Built-in Bluetooth, USB/SD, Mp3 and FM.
▪ 1 Mic input (6.3mm jack), 1 AUX input by RCA on rear panel.
▪ One RCA AUX output on the rear panel.
▪ 8 knobs with individual volume control for Zone 1-2, MIC, AUX1, Mp3, bass, treble and master.
▪ LED indicators for power, protect and signals.
▪ With natural cooling fan to control internal temperature.
▪ Overall protection of short-circuit, overload and high temperature to avoid any damage.

Specification:
Model  | SP-MT60  | SP-MT120  | SP-MT180  |
Description  | Mini 2 Zone PA Mixer Amplifier  |
Rated Power  | 60W  | 120W  | 180W  |
Built-in Sources  | Bluetooth, USB/SD, Mp3 & FM, 1 Mic, 1 Aux  |
Speaker Output  | 100V & 4Ω-16Ω  |
Frequency Response  | 80Hz~20KHz  |
THD  | <0.5% at 1 KHz 100V -3dB  |
S/N Ratio  | 75dB  |
Input  | MIC: 6mV/1KΩ, AUX: 500mV/10KΩ  |
Volume Control  | Zone 1-2, MIC, AUX1, Mp3, bass, treble and master  |
Tone Control  | BASS: 100Hz (±10dB), TREBLE: 10kHz (±10dB)  |
Cooling Method  | Automatic FAN strong air cooling method  |
Protection  | Overheating,overload,short circuit,alarm protection  |
Power Supply  | AC 110~220V, 50/60Hz  |
Dimension  | 485*88*340mm(W*H*D)  |
Net Weight  | 5KG  | 6KG  | 8KG  |

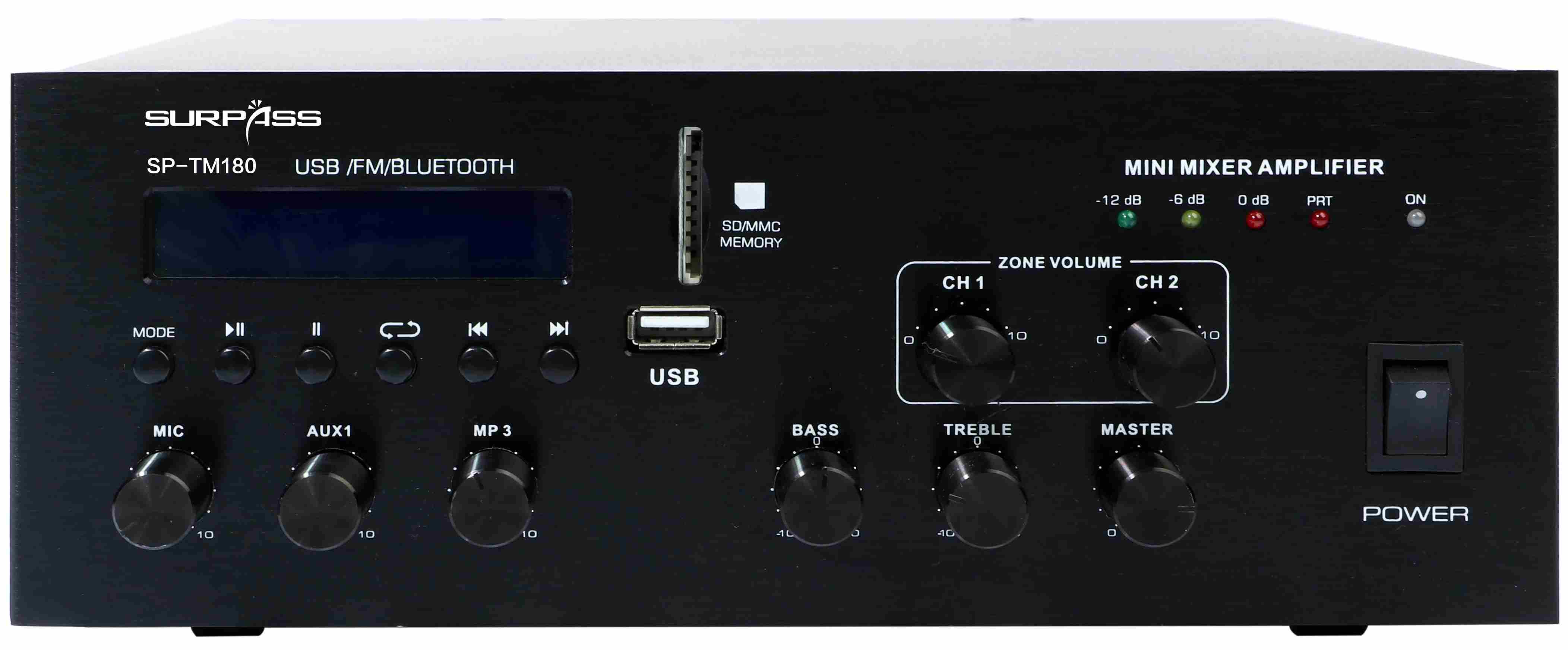

Appearance:






                High Definition Pictures:





                Brochure/Data Sheet:


                  SP-MT60SP-MT120SP-MT1802zoneMixerAmp.pdf、




                Operation Manual:
