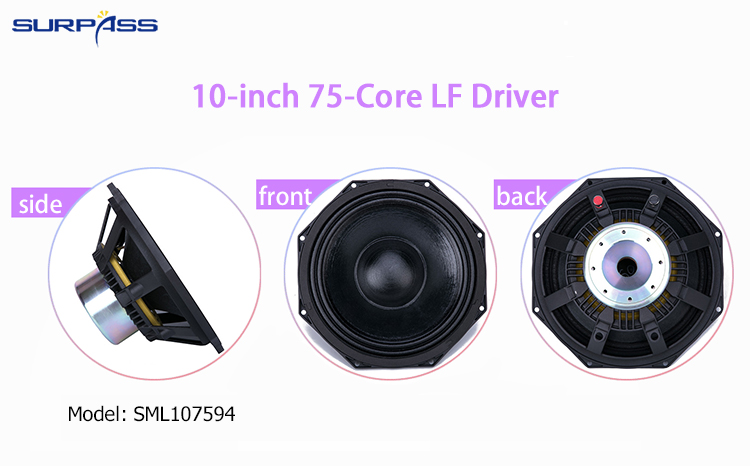

SML107594 10-inch 75-Core LF Driver
NdFeB internal magnetism 10-inch 75-Core LF Driver
NdFeB internal magnetism 10-inch 75-Core LF Driver
SML107594 10-inch 75-Core LF Driver Specification:
Model | SML107594 |
Description | 10-inch 75-core bass speaker |
Installation aperture | About 232mm |
Diagonal screw hole | About 265mm |
Outer Diameter | About 259mm |
Height | About 117mm |
Magnet material | NdFeB internal magnetism |
Voice coil | 75-core inner and outer winding circular wire |
Cone paper | Malaysian paper basin |
Frame material | Cast aluminum frame |
Rated Impedance | 8 ohm |
DC Impedance | 6 ohm |
Rated Power | 350 Watts |
Maximum power | 700 Watts |
Sensitivity | 98 dB/1W/1m |
Frequency range | 60-3K Hz |
Resonant frequency | 63Hz |
Electrical Quality Factor Number | 0.25 |
Mechanical Quality Factor Value | 6.4 |
Total Quality Factor Number | 0.23 |
Effective Volume | 27 dm3 |
Vibration Area | 320.0cm2 |
Magnetic Force | 16.4 Txm |
Effective Mobile Quality | 34g |
Place of Origin | Guangzhou, China |
Net Weight | About 2.9KG (No packaging) |
