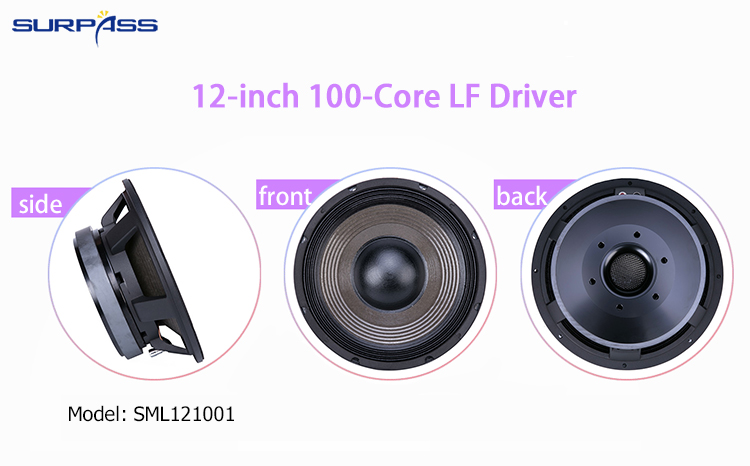

SML121001 12-inch 100-Core LF Driver
Ferrite 220 magnetism 12-inch 100-Core LF Driver
Ferrite 220 magnetism 12-inch 100-Core LF Driver

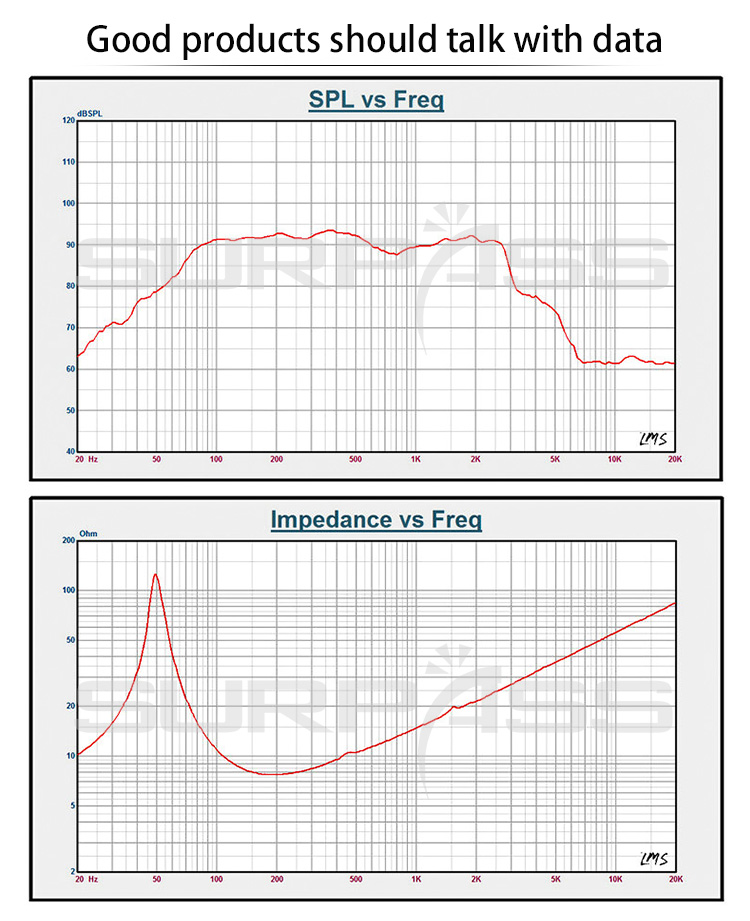

SML121001 12-inch 100-Core LF Driver Specification:
Model | SML121001 |
Description | 12-inch 100-core bass speaker |
Installation aperture | About 283mm |
Diagonal screw hole | About 297mm |
Outer Diameter | About 312mm |
Height | About 125mm |
Magnet material | Ferrite 220 magnetism |
Voice coil | 100-core Copper Aluminum Flat Wire |
Cone paper | Import JBL paper basin |
Frame material | Cast aluminum frame |
Rated Impedance | 8 ohm |
DC Impedance | 6 ohm |
Rated Power | 500 Watts |
Maximum power | 1K Watts |
Sensitivity | 94 dB/1W/1m |
Frequency range | 50-2.5K Hz |
Resonant frequency | 49Hz |
Electrical Quality Factor Number | 0.34 |
Mechanical Quality Factor Value | 7.5 |
Total Quality Factor Number | 0.33 |
Effective Volume | 39.4 liters |
Vibration Area | 535cm2 |
Magnetic Force | 22.6Txm |
Effective Mobile Quality | 105g |
Place of Origin | Guangzhou, China |
Net Weight | About 9.8KG (No packaging) |
