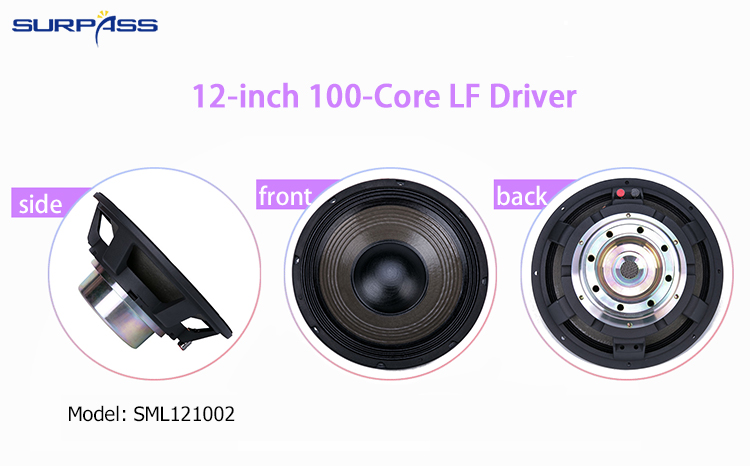

SML121002 12-inch 100-Core LF Driver
NdFeB Internal magnetism 97mm 12-inch 100-Core LF Driver
NdFeB Internal magnetism 97mm 12-inch 100-Core LF Driver
SML121002 12-inch 100-Core LF Driver Specification:
Model | SML121002 |
Description | 12-inch 100-core bass speaker |
Installation aperture | About 283mm |
Diagonal screw hole | About 297mm |
Outer Diameter | About 313mm |
Height | About 126mm |
Magnet material | NdFeB Internal magnetism 97mm |
Voice coil | 100-core Copper Aluminum Flat Wire |
Cone paper | Import JBL paper basin |
Frame material | Cast aluminum frame |
Rated Impedance | 8 ohm |
DC Impedance | 6 ohm |
Rated Power | 500 Watts |
Maximum power | 1K Watts |
Sensitivity | 96 dB/1W/1m |
Frequency range | 50-3K Hz |
Resonant frequency | 55Hz |
Electrical Quality Factor Number | 0.36 |
Mechanical Quality Factor Value | 9.42 |
Total Quality Factor Number | 0.35 |
Effective Volume | 37.4 liters |
Vibration Area | 539cm2 |
Magnetic Force | 22.3Txm |
Effective Mobile Quality | 74g |
Place of Origin | Guangzhou, China |
Net Weight | About 5.8KG (No packaging) |
